In the realm of advanced cooling technologies, the vapor chamber stands out as a highly effective solution for managing heat in compact and high-performance electronic devices.
This innovative cooling component helps spread heat quickly and evenly across surfaces, preventing hotspots and improving overall thermal performance. In this article, we’ll explore what a vapor chamber is, how it functions, and why it’s becoming increasingly important in modern electronics.

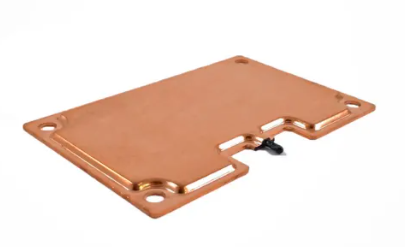

What is a Vapor Chamber?
You can think of it as a flattened version of a heat pipe, often used to cool powerful or compact electronics like CPUs, GPUs, and voltage regulator modules (VRMs).
How Vapor Chambers Work
Inside, there’s a small amount of liquid (usually water) and a porous material called a wick. Here’s the process:
- Heat is applied to the hot side (evaporator), causing the liquid to turn into vapor.
- The vapor moves to cooler areas of the chamber.
- In these cooler areas (the condenser), the vapor turns back into liquid, releasing heat.
This cycle spreads heat quickly and evenly, even in tight spaces.
Main Parts
- Evaporator: The hot side of the vapor chamber where heat makes the liquid turn into vapor, quickly carrying heat away from hot spots.
- Condenser: The cool side where the vapor releases its heat and turns back into liquid, moving heat away from sensitive components.
- Wick Structure: A spongy material inside the chamber that pulls the liquid back to the evaporator so the cycle can keep going without a pump.
- Working Fluid: The liquid (often water) that absorbs heat, turns into vapor, releases heat at the condenser, and flows back as liquid. This cycle makes heat transfer very efficient.
Common Uses
- Gaming Laptops: Maintain CPU and GPU temperatures during intense use.
- Smartphones & Tablets: Prevents overheating in compact devices.
- Electric Vehicles: Helps manage battery temperatures.
Vapor chambers efficiently spread heat in compact or high-performance electronics, keeping devices cool and improving performance.
Advantages of Vapor Chambers
Here are their key advantages:
- High Thermal Conductivity
Vapor chambers transfer large amounts of heat quickly while maintaining a thin, compact profile.
- Uniform Heat Distribution The design ensures even heat spread, preventing hotspots and maintaining consistent temperatures, which is crucial for sensitive components like CPUs and GPUs.
- Passive Operation
Vapor chambers are entirely based on thermodynamic principles and do not have any moving parts. This enhances reliability and minimizes the risk of mechanical failure.
- Orientation Insensitivity
They function effectively regardless of device orientation, a key advantage for portable electronics that may be used in various positions.
- Adaptability to Complex Geometries
Advanced designs, including 3D vapor chambers, can conform to intricate component layouts, enabling efficient cooling even in devices with complex internal structures.
Vapor chambers are a preferred solution for modern electronics, offering a balanced combination of high performance, compact size, and reliable thermal management.
Limitations of Vapor Chambers
- High Cost
Making vapor chambers requires precise manufacturing, vacuum sealing, and high-quality materials, making them more expensive than regular heat pipes or metal heat spreaders. - Limited Vertical Heat Transfer
They spread heat very well across their surface, but aren’t as effective at moving heat up or down. This can be an issue for devices with stacked components. - Sensitive to Mechanical Stress
The internal structure, especially in copper chambers, can be damaged by too much pressure or force, reducing their cooling ability. - Design and Integration Challenges
Their flat and rigid shape can make it harder to fit them into certain devices. Custom designs can also increase development time and costs. - Performance Limits at High Power
Exceeding about 500 watts can reduce efficiency or damage the vapor chamber.
Although vapor chambers are excellent at distributing heat evenly, they might not be appropriate for every application. Alternatives, such as heat pipes or liquid cooling, may be better options depending on specific needs.
Vapor Chamber
a flat, planar heat pipe with a wick and working fluid that is often made of copper or stainless steel. with a wick and working fluid.
Key Features:
- Uniform Heat Spreading: Prevents hotspots across a large area.
- Thin Profile: Ideal for tight vertical spaces.
- High Thermal Conductivity: Extremely efficient, better than solid metals.
- Complex Manufacturing: More expensive due to precise production requirements.
Applications:
Heat Pipe
A sealed, hollow tube (usually copper) with a small amount of working fluid and a wick inside.
Key Features:
- Directional Heat Transfer: Moves heat from a specific point to another location.
- Flexible: Can be bent to fit different designs.
- High Thermal Conductivity: Much higher than solid metals like copper.
- Cost-Effective: Easier and cheaper to manufacture.
Both are essential in modern electronics, providing efficient cooling tailored to different needs.
Conclusion: Vapor Chambers
Vapor chambers are advanced cooling solutions that efficiently spread heat across surfaces using phase-change technology. They excel in compact and high-performance electronics, such as gaming laptops, servers, smartphones, and electric vehicles, by preventing hotspots and maintaining stable temperatures.
Their main advantages include high thermal conductivity, uniform heat distribution, thin and lightweight design, passive operation, orientation insensitivity, and adaptability to complex geometries. However, they come with limitations: higher manufacturing costs, limited vertical heat transfer, sensitivity to mechanical stress, integration challenges, and performance limits at very high power.
Vapor chambers evenly spread heat across a wide area, while heat pipes efficiently move heat from one specific point to another. Choosing between them depends on the device’s cooling requirements, space constraints, and thermal management needs. Vapor chambers provide efficient and even heat management, making them ideal for modern electronics.
